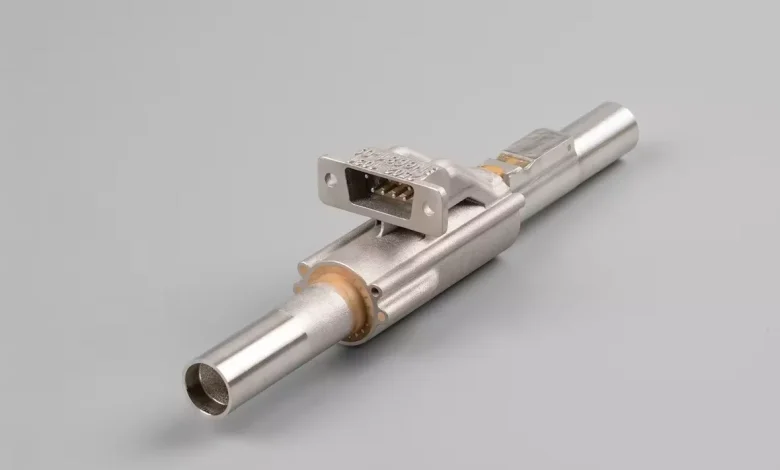

CSEM, a research and development center based in Switzerland, has developed an advanced thermal control system specifically engineered for satellite applications. This development, undertaken in collaboration with Thales Alenia Space and Lisi Aerospace Additive Manufacturing, represents an important evolution in the management of sensitive onboard electronics and instrumentation within the space environment. Central to this system is a sophisticated 3D-printed pipe segment that integrates both heating elements and in-situ temperature sensing capabilities into a single, cohesive component, departing from conventional multi-part assemblies.
The Imperative of Thermal Regulation in Spacecraft
Thermal control constitutes a fundamental aspect of satellite design and operational integrity. In the vacuum of space, spacecraft components are subjected to wide temperature fluctuations, ranging from extreme cold in shadow to intense heat when exposed to direct solar radiation. Without precise thermal regulation, the intricate electronic systems, sensitive optical instruments, and propulsion units essential for a satellite’s mission can experience degradation, malfunction, or complete failure. Traditional thermal control systems, which often involve complex networks of heat pipes, radiators, heaters, and sensors assembled from discrete components, typically contribute significant mass, present complex integration challenges, and introduce numerous potential points of failure. Given the increasing demand for more compact, high-performance, and cost-effective satellites, particularly for large constellations, the requirement for lighter, more efficient, and more reliable thermal management solutions has become increasingly pronounced.
Advancements Through Additive Manufacturing Integration
CSEM’s innovative approach addresses these challenges through the application of additive manufacturing, specifically high-precision laser powder bed fusion (LPBF) technology. This advanced 3D printing method facilitates the creation of intricate geometries that are not achievable with conventional manufacturing techniques. By utilizing LPBF, CSEM has successfully embedded heating elements, temperature sensors, and connection interfaces directly within the structure of a stainless steel pipe segment. This level of integration eliminates the need for separate components, reduces assembly complexity, and contributes to a reduction in the overall mass of the thermal control unit. Mass reduction is a critical factor for optimizing launch costs and enhancing satellite performance.
The selection of stainless steel as the primary material for this component is deliberate. This alloy exhibits robust mechanical properties and the capacity to withstand the extreme thermal cycling encountered in orbital operations. Furthermore, its chemical compatibility with ammonia, a commonly employed working fluid in satellite thermal loops, ensures the long-term integrity and reliability of the system under operational pressures. Electrical conductors are precisely routed within the pipe’s structure, ensuring uniform heat distribution across the component’s surface. This precise heating capability, coupled with the integrated temperature sensors, enables highly accurate and responsive thermal management, thereby maintaining optimal operating temperatures for critical satellite subsystems.
Collaborative Development and Its Outcomes
The successful development of this system highlights the efficacy of interdisciplinary collaboration. CSEM contributed its specialized knowledge in microtechnology and systems integration. Thales Alenia Space, a prominent entity in space systems, provided essential insights into the rigorous requirements and operational demands of flight hardware. Lisi Aerospace Additive Manufacturing offered its expertise and capabilities in industrial-scale additive manufacturing processes, ensuring the production viability and robustness of the 3D-printed components. This synergy of specialized knowledge was instrumental in translating a conceptual design into a functional, high-performance solution.
The implications of CSEM’s 3D-printed thermal control system are substantial for the aerospace industry. The miniaturization and mass reduction achieved through this integrated design are particularly advantageous for the expanding small satellite market and the deployment of extensive satellite constellations, where reductions in mass directly translate into cost efficiencies and expanded mission capabilities. Moreover, the enhanced performance and reliability resulting from fewer discrete parts and precise thermal control are expected to contribute to extended operational lifespans for satellites and a reduction in mission failures attributed to thermal anomalies. While the initial development of such advanced manufacturing processes may be capital-intensive, the potential for cost efficiency in large-scale production and simplified integration could yield significant long-term savings across the aerospace sector.
This development represents an important step in the application of additive manufacturing to critical space technologies. It contributes to future satellite designs that are not only lighter and more compact but also inherently more robust and capable of operating effectively in demanding extraterrestrial environments. As space exploration continues to advance, CSEM’s approach to thermal management is poised to play a role in supporting future generations of sophisticated space missions.
